Vortex EZ Support Removal Station
Affordable Device
to Dissolve Your Supports

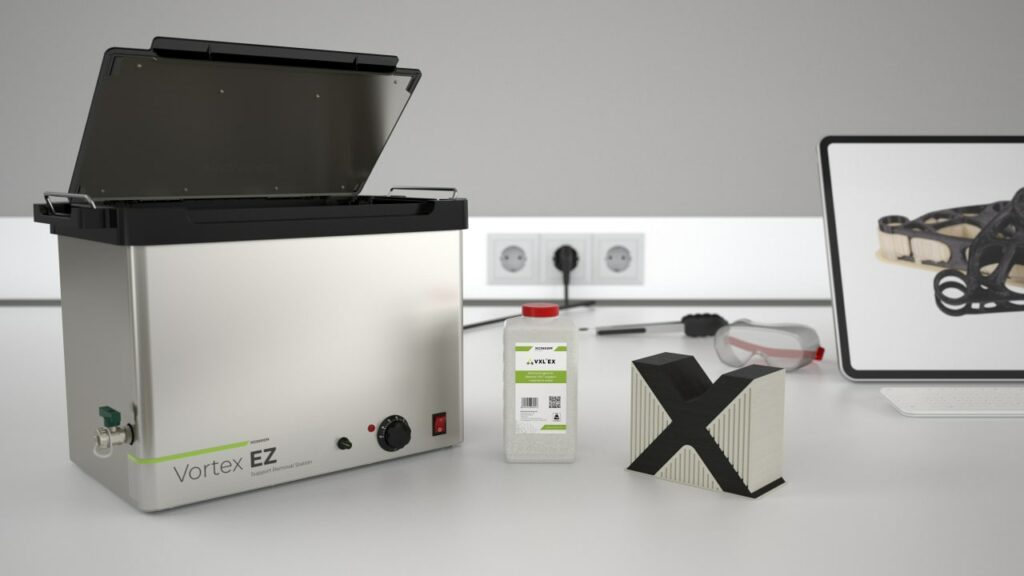

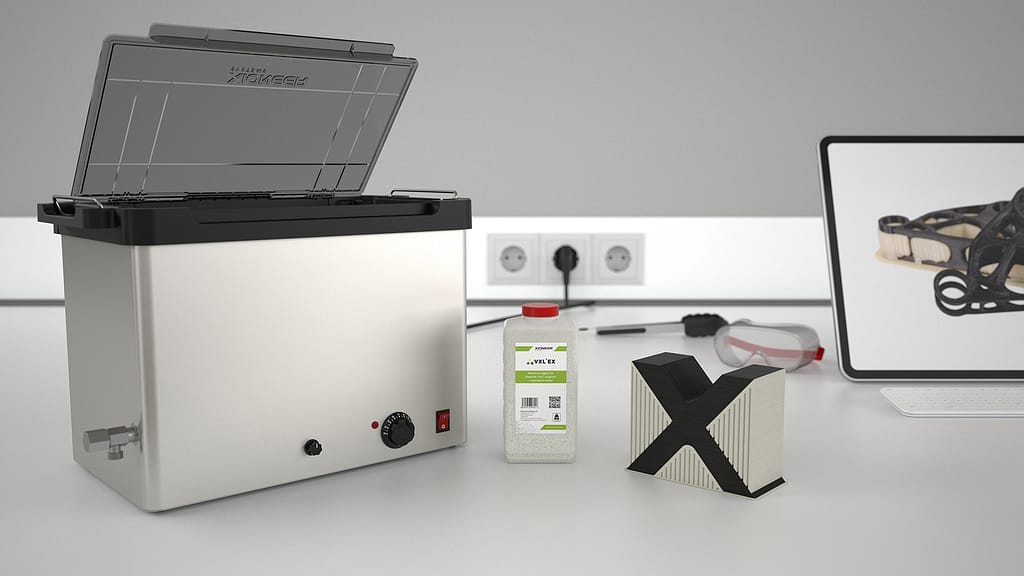

Vortex EZ is our easy-to-use affordable desktop support removal station. It will easily fit in your office, workshop, lab, school, and production floor.
How does it work?
Easy to Use,
Powerful in Action
Large 465 x 275 x 210 mm basket and a powerful heater for large 3D printed parts and safe,
plug-and-play operation
Dissolve Your Supports
in 5 Simple Steps
Fill Water and Washing Powder
Add tap water and a few spoons of our safe and non-toxic VXL-EX washing powder.
Place Your Part
Place your 3d printed part with support structures inside the basket.
Set Temperature
Set dissolving temperature up to 85°C depending on the model material and support material you use.
Supports Will Dissolve
Depending on the complexity of your supports it will take from a half-hour to a few hours to dissolve all support structures.
Rinse Your Part
Remove your part and rinse off any remains of the washing liquid with tap water. Congratulations, your part is ready!
Order now!
Technical Specifications
| Outside Dimensions (LxWxH) | 640 x 370 x 450 mm |
| Basket Dimension / Maximum Part Size (LxWxH) | 450 x 260 x 205 mm |
| Tank Solvent Capacity | 11 – 38 Liter |
| Net Weight Without Solvent | 22 kg |
| Adjustable Temperature Range | 30 °C – 85 °C |
| Heat-up Time (38L, 20°C – 70 °C) | Approx. 1 hour |
| Recommended Model Materials Verify temperature settings with a temperature resistance of your model material | No restrictions |
| Recommended Support Materials | VXL (All Types) |
| Peak Power Consumption The peak power consumption of the EasyWash EW1 during heating up. | 1220 W (110V/60Hz) 1360 W (230V/50Hz) |
| Average Power Consumption at 85 °CAverage power consumption with a full tank to maintain the set temperature once heated up. | Approx. 250 W |
| Power Supply | AC 230V/50Hz EU Version, AC 110V/60Hz US Version |
| Dissolving Technique | Continous fluid agitation and heat |
| Maintenance Interval | On demand |
| CE – Conformity | EU |
| Warranty | 6 months excluding accessories and consumables |
Any Questions? Try our Help Center!
Want to Try VXL Support Material?
VXL-Go Starter Kit
Ready to Try VXL? Our all-inclusive VXL-Go bundle will get you started in no time. It has a simple support removal station, a 100g spool of either VXL 70 or VXL 90 with a solvent, and a number of accessories to get you off the ground.
Dissolve VXL
with our eco-friendly dissolvent VXL-EX!
VXL-EX is an affordable, safe, and non-caustic detergent specifically designed to dissolve VXL. Learn more about how to use VXL-EX.
Vortex EZ
Support Removal Station
Available now for only (incl. German VAT):
€ 1 799,-
